Before installing a Switchee device, please refer to the installation guide containing all of the information you need to install the device as efficiently and as safely as possible.
Installation must be carried out by a competent person in accordance with BS 7671 and applicable UK regulations.
Download the wiring diagrams here.

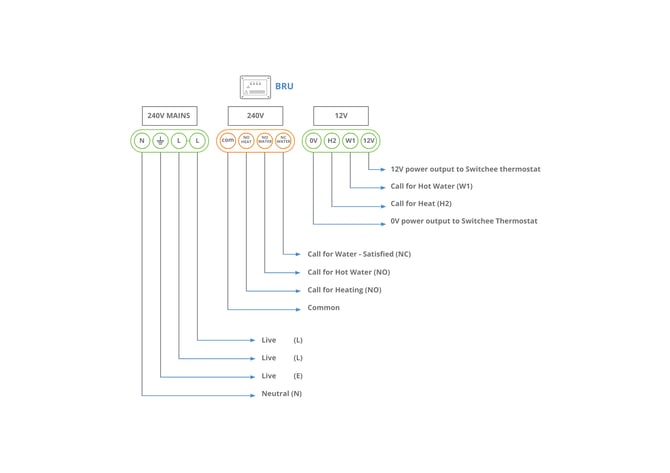

BRU wiring terminals
240V combi boiler
Low voltage combi boiler

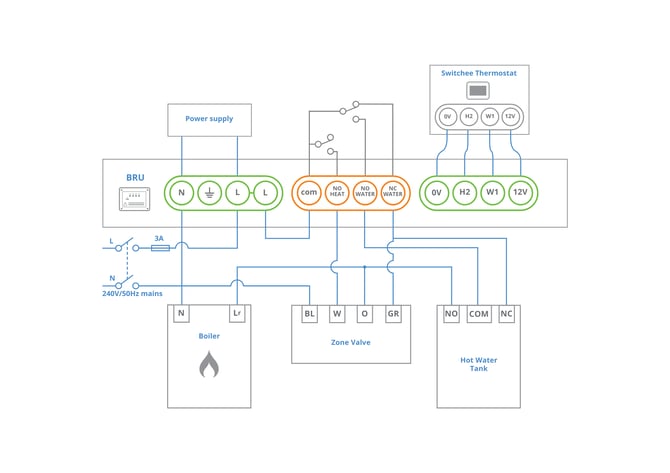

Y-plan boiler
S-plan boiler
District heating valve
Switchee has been designed to ensure installation is as simple as possible. However, we also understand that every home is different and we are dedicated to ensuring that installers have all of the support they need.
For more support, contact our installer support team directly on:
Tel: 0800 133 7957 | Email: install@switchee.com
