Where can I find Switchee thermostat wiring diagrams?
Installing a Switchee
Before installing a Switchee device, please refer to the installation guide containing all of the information you need to install the device as efficiently and as safely as possible.

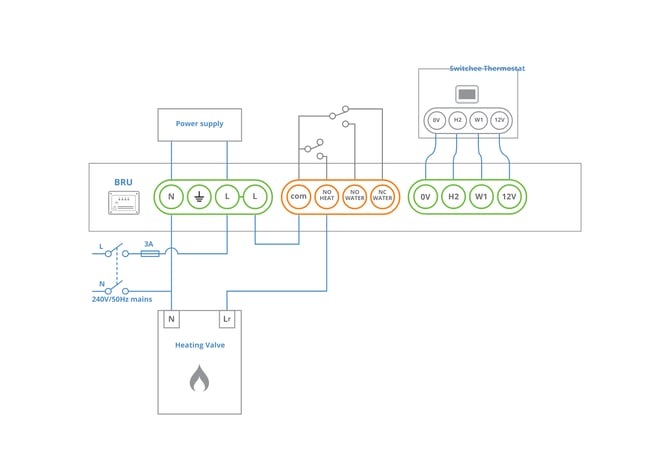

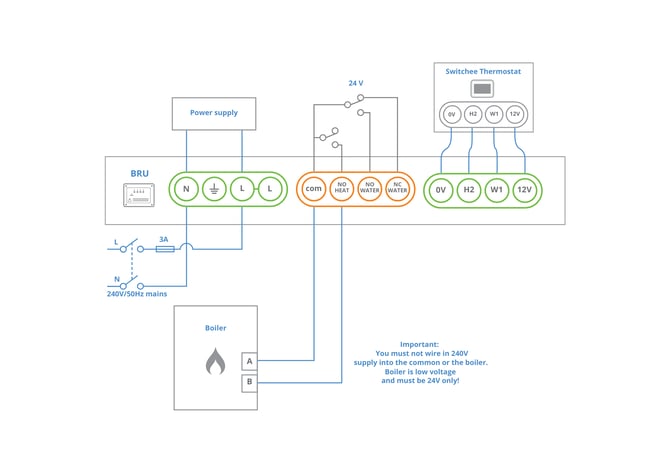

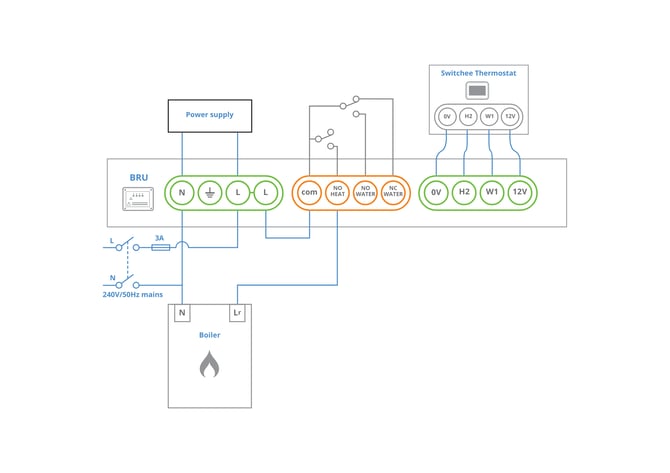

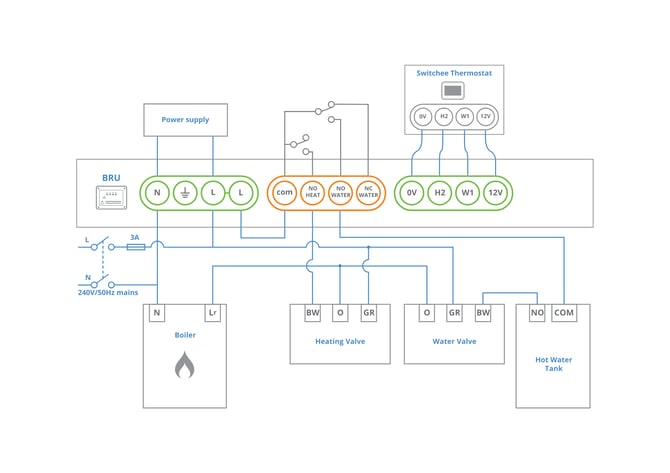

Wiring diagrams can be found separately here.
Switchee has been designed to ensure installation is as simple as possible. However, we also understand that every home is different and we are dedicated to ensuring that installers have all of the support they need.
For more support, contact our installer support team directly on:
Tel: 0800 133 7957 | Email: install@switchee.com
